Equipment

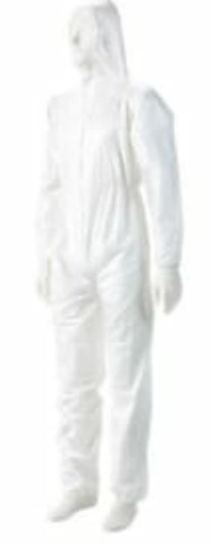

P-DISPO, disposable polypropylene coverall protects the user's torso, arms, legs and head from the hazards of fine particle contact in dirty environments
Spunbound polypropylene is a lightweight economical material that offers protection ideally suited for minimal protection applications and has a low hold-out level on fluid resistance
Compliance:
Performs equivalent to the requirement of CE type examinations, PPE Directive, 89/686/EEC, EN EN ISO13982:1 2004, Protective Clothing for use against solid particulates: Performance requirements for protective clothing providing protection to the full body against airborne solid particulates
Style: Disposable full body coverall with elasticated wrists, legs and waist, taped, hooded and a nylon ziper front
Material: 50 gsm non-woven spun bond polypropylene
Sizes: M to 3XL

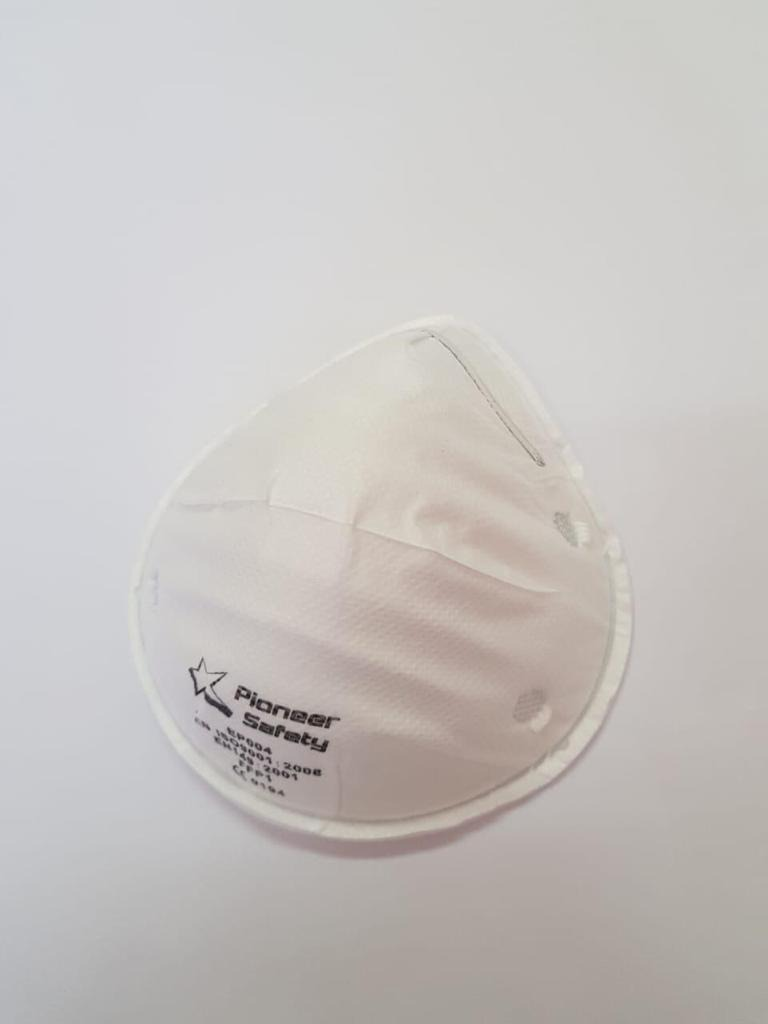

A low profile mask offers a better fit with glasses and goggle
A soft inner lining offers more comfort and less irritation
Low breathing resistance increases worker’s acceptance
Smooth, pre-stretched head straps offer a good fit and comfort over the head and neck
Latex free
Contoured adjustable nosepiece offers maximum performance
Standard: FFP2 NR EN 149 2001 A1 2009 SABS Homologation Approval No. AZ2003/47

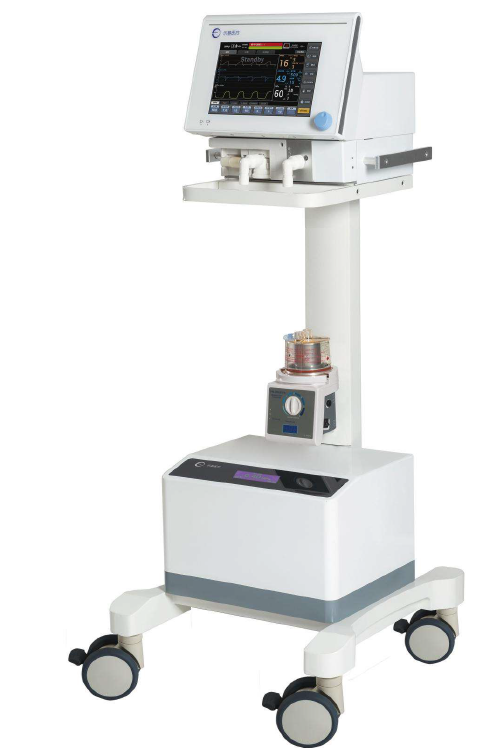

Display: 10.4” touch screen
Ventilation Mode: VCV/IPPV、PCV、V-SIMV、PSV、CPAP、BIPAP、SIGH、PEEP
Air Source: O2: 0.32Mpa±0.6Mpa
Air Source: Air: 0.32Mpa±0.6Mpa
Tidal Volume: 20ml～2000ml
Peak Velocity: 180 L/min
Breath Time: 0.3-6s
Pressure Control: 0—50cmH2O
Inspiratory trigger mode: Pressure and flow
Inspiratory pressure trigger: -20 cmH2O～0 cmH2O
Flow trigger: 0～20L/min
Maximum safe pressure: ＜125 cmH2O
Inspiratory rise time: 0.1—2.0s
Sign pressure: 0～35 cmH2O
I:E : 10:1-1:10
Pressure range: 10～60 cmH2O
PEEP: 0-25cmH2O
apnea interval: 10-60s
Oxygen concentration range: 21%-100%
Monitoring Function: VT, MV, FREQ, FiO2%, Paw, CL , Flow[L/min], Pa[kPa]，Waveform
Battery: Built-in high capacity battery can ensure the machine working continuously not less than1 hour
Power source: AC：100V-240V 50/60Hz

Advantage Design:
Gas - Electricity separation design ensures safe operation
Wide application to adults, children
Exhalation valve can be disassembled and disinfected, which avoids cross-infection
Seamless switching of invasive and non-invasive ventilation mode
High integrated modular design of the gas circuit greatly reduces gas leakage , gas loss of system dead space and system compliance and responds rapidly
Proportional valve with high speed and high precision sends air quickly and accurately, which improves the man-machine synchronization, reduces the consumption of additional respiratory power, provides patients with comfortable excellent breathing
Intelligent identification of off tube, blocking and other conditions ensures the safety of patients
Optional: humidifier, medical air compressor
Alarm Function:
Upper and lower airway pressure limit alarm
Gas pressure shortage alarm
Upper and lower minute ventilation volume limit alarm
Upper and lower tidal volume limit alarm
Respiratory rate alarm
Oxygen concentration alarm
Low battery alarm
Asphyxiation alarm
